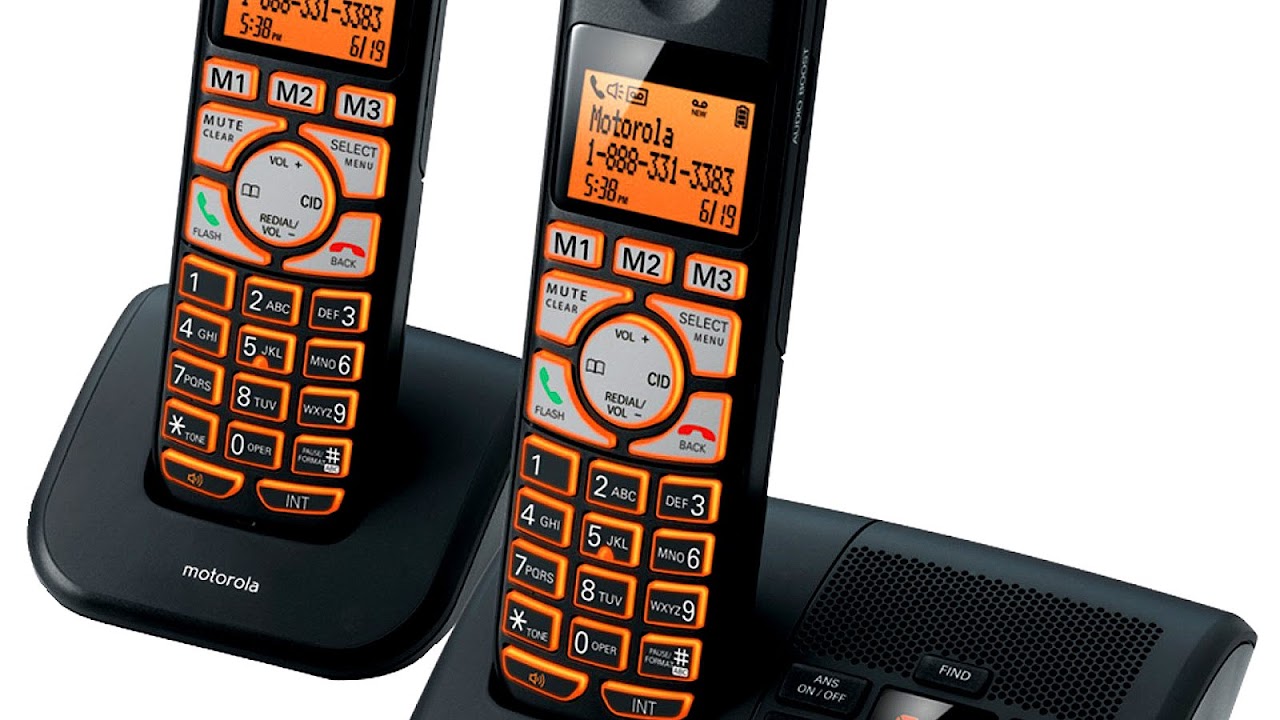

Motorola K702b DECT 6.0 Cordless Phone System with Caller ID and ...
photo src: www.walmart.com

A cordless telephone or portable telephone is a telephone in which the handset is portable and communicates with the body of the phone by radio, instead of being attached by a cord. The base station is connected to the telephone network through a telephone line as a corded telephone is, and also serves as a charger to charge the handset's batteries. The range is limited, usually to the same building or some short distance from the base station.

The base station on subscriber premises is what differentiates a cordless telephone from a mobile telephone. Current cordless telephone standards, such as PHS and DECT, have blurred the once clear-cut line between cordless and mobile telephones by implementing cell handoff (handover); various advanced features, such as data-transfer; and even, on a limited scale, international roaming. In specialized models, base stations are maintained by a commercial mobile network operator and users subscribe to the service.

In 1994, digital cordless phones in the 900 MHz frequency range were introduced. Digital signals allowed the phones to be more secure and decreased eavesdropping--it was relatively easy to eavesdrop on analog cordless phone conversations. In 1995, digital spread spectrum (DSS) was introduced for cordless phones. This technology enabled the digital information to spread in pieces among multiple frequencies between the receiver and the base, thereby making it almost impossible to eavesdrop on the cordless conversations.

Unlike a corded telephone, a cordless telephone needs mains electricity to power the base station. The cordless handset is powered by a rechargeable battery, which is charged when the handset is stored in its cradle.


4-Line Small Business Phone System | VTech Multi-line Business and ...
photo src: www.vtechphones.com


Maps, Directions, and Place Reviews



History

A jazz musician named Teri Pall invented a version of the cordless phone in 1965 but could not market her invention, as its 2-mile (3.2 km) range caused its radio signals to interfere with aircraft communications. In 1968, she sold her rights to the cordless phone to a manufacturer who modified it for practical use.

Bell Labs Lineless Telephone 1963-1967

Beginning in 1963, a small team of Bell Laboratories engineers were given the task of developing a practical and fully functional duplex Lineless Telephone. The team included (in alphabetic order): S.M. Baer, G.C. Balzer, J.M. Brown, W.F. Clemency, M. Rosenthal, and W. Zinsmeister, under the direction of W.D. Goodale, Jr.

By 1964, breadboard models were working in the lab. During 1964-65 these were refined and packaged to test around the Bell Labs Holmdel N.J. building and grounds. The system operated under an experimental license on crystal controlled channels in the 35 and 43 MHz bands using FM, a low power transmitter and a sensitive superhet receiver. Full supervision of all telephone functions, including on-off hook and dialing was provided via an out of band tone supervision system. The user end of the system was packaged to look like a normal (although bulky) telephone handset. The other end - the base station was a small box connected to the normal telephone network. (See additional photographs in Bell Laboratories Record article below. Note especially the "dial".)

About 50 units were built in a Western Electric model shop in Andover Mass. for field trails in two Bell System locations in the Boston and Phoenix area.

The overall project was described in the Bell Laboratories Record, Volume 45 (1967), pages 202-203. See link at: http://www.telephonecollectors.info/index.php/wiring-diagrams/doc_view/11603-67jun-blr-p202-experimental-lineless-cordless-telephone

In 1966, George Sweigert submitted a patent application for a "full duplex wireless communications appartus". He was awarded US 3449750  in June 1969 He (see below: Patents). Sweigert, a radio operator in World War II stationed at the South Pacific Islands of Guadalcanal and Bougainville, developed the full duplex concept for untrained personnel, to improve battlefield communications for senior commanders.

Sweigert was an active proponent for directly coupling consumer electronics to the AT&T-owned telephone lines in the late 1960s. (This was banned at the time; most telephones were made by Western Electric and leased to the customer by AT&T.) The Carterfone coupler, a crude device for interconnecting a two-way radio with the telephone, led to the reversal of the Federal Communications Commission ban on direct coupling of consumer equipment to phone lines (known as the landmark Carterfone decision) on June 26, 1968. The original cordless phones, like the Carterfone, were acoustically (not electrically) connected to the Public Switched Telephone Network (PSTN).

In 1977, Douglas G. Talley and L Duane Gregory were granted US 4039760  for a duplex voice communication link including controls therefore as provided between a base station connected directly to a telephone line of a telephone exchange and a mobile unit consisting of a small, compact cordless telephone instrument containing transmitter, receiver and control circuits powered by a rechargeable battery pack. A single logic tone is transmitted and detected for all logical control for ring signals, on-hook and off-hook signals and dial pulses.


Cordless Office Phone System Video



Frequencies

In the United States, seven frequency bands have been allocated by the Federal Communications Commission for uses that include cordless phones. These are:

  • 1.7 MHz (1.64-1.78 MHz, up to 5 channels, AM ). Cordless phones manufactured after October 1, 1984 are not allowed to use this band and were required to use the newer (higher) 43-50 Mhz frequencies.
  • 27 MHz, near the Citizens Band (CB) Radio service with some frequencies being 26.010, 26.050, 26.380 and 26.419 MHz. These were initially paired with the 1.7 MHz frequencies, then, later, with the 49 MHz frequencies. Signals were FM - frequency modulation.
  • 43-50 MHz (Base: 43.72-46.97 MHz, Handset: 48.76-49.99 MHz, FM) Allocated in December 1983, and approved for use in mid-1984 for 10 channels. 15 additional channels allocated April 5, 1995.
  • 900 MHz (902-928 MHz, allocated in 1993)
  • 1.9 GHz (1880-1900 MHz, used for DECT communications outside the US)
  • 1.9 GHz (1920-1930 MHz, developed in 1993 and allocated in October 2005, especially with DECT 6.0)
  • 2.4 GHz (2400-2500 MHz, allocated in 1998)
  • 5.8 GHz (5725-5875 MHz, allocated in 2003 due to crowding on the 2.4 GHz band)

Due to initial over-crowding of earlier frequency allocations causing users to discontinue using telephone equipment operating on those frequencies, those bands are now relatively clear. Currently, radio monitoring hobbyists note usage of the older equipment with telephone activity in the US AM broadcast band, some 27 MHz frequencies and most older 43-50 MHz frequencies.

1.7 MHz cordless phones were the earliest models available at retailers, and are generally identifiable by their large metal telescoping antennas. Channels just above the AM broadcast band were selected manually by the user. Some of the frequencies used are now part of the expanded AM radio band, and can be clearly heard by anyone with an AM radio. There are reports of people still using these phones, and even using them as makeshift AM radio stations that can be heard for a couple of city blocks. These models are no longer in production, and are considered obsolete because they are susceptible to eavesdropping and interference, especially from fluorescent lighting and automobile ignition systems. However, a person under the right conditions could get 0.5 miles (0.80 km) or more range out of these AM systems.

43-50 MHz cordless phones had a large installed base by the early 1990s, and featured shorter flexible antennas and automatic channel selection. Due to their popularity, an overcrowding of the band led to an allocation of additional frequencies; thus manufacturers were able to sell models with 25 channels instead of just 10 channels. Although less susceptible to interference than previous AM units, these models are no longer in production and are considered obsolete because their frequencies are easily heard on practically any radio scanner. Advanced models began to use voice inversion as a basic form of scrambling to help limit unauthorized eavesdropping. These phones share the 49.8 MHz band (49.830 - 49.890) with some wireless baby monitors.

900 MHz cordless phones are still sold today and have a huge installed base. Features include even shorter antennas, up to 30 auto selecting channels, and higher resistance to interference. Available in several varieties; analog, analog spread spectrum (100 kHz bandwidth), digital, and digital spread spectrum, most being sold today are low-cost analog models, which are still susceptible to eavesdropping. Digital variants can still be scanned, but are received as a digital hiss and therefore are difficult to eavesdrop upon. Digital transmission is immune to static interference but can experience signal fade (brief silence) as the phone goes out of range of the base. Newer Digital Spread Spectrum (DSS) variants spread their signal over a range of frequencies, providing more resistance to signal fade. This technology enabled the digital information to spread in pieces among several frequencies between the receiver and the base, thereby making it almost impossible to eavesdrop on the cordless conversation. The FCC only allows DSS model phones to transmit at the full power of 1 watt, which allows increased range over older analog and digital models.

Virtually all new telephones sold in the US use the 900 MHz, 1.9 GHz, 2.4-GHz, or 5.8 GHz bands, though legacy phones can remain in use on the older bands. There is no specific requirement for any particular transmission mode on 900, 1.9, 2.4, and 5.8, but in practice, virtually all newer 900 MHz phones are inexpensive analog models; some digital features such as DSSS and FHSS are generally available only on the higher frequencies.

Some cordless phones advertised as 5.8 GHz actually transmit from base to phone on 5.8 GHz and transmit from phone to base on 2.4 GHz or 900 MHz, to conserve battery life of the phone.

The recently allocated 1.9 GHz band is used by the popular DECT phone standard and is considered more secure than the other shared frequencies.


Amazon.com : Motorola DECT 6.0 Cordless Phone with 3 Handsets ...
photo src: www.amazon.com


Performance

Many cordless phones in the early 21st century are digital. Digital technology has helped provide clear sound and limit eavesdropping. Many cordless phones have one main base station and can add up to three or four additional bases. This allows for multiple voice channels that allow three-way conference calls between the bases. This technology also allows multiple handsets to be used at the same time, and up to two handsets can have separate conversations with outside parties.

Manufacturers usually advertise that their higher frequency systems improve audio quality and range. In the ideal case, higher frequencies actually have signal worse propagation as shown by the basic Friis transmission equation, and path loss tends to increase at higher frequencies as well. Practical influences on quality and range are signal strength, antenna quality, the method of modulation used, and interference, which varies locally.

"Plain old telephone service" (POTS) landlines are designed to transfer audio with a quality that is just adequate for the parties to understand each other. Typical bandwidth is 3.6 kHz; only a fraction of the frequencies that humans can hear, but enough to make the voice intelligible. No phone handset can improve on this quality, as it is a limitation of the phone system itself. Higher-quality phones can transfer this signal to the handset with less interference over a greater range, however. Most cordless telephones, no matter what frequency band or transmission method is used, will hardly ever exactly match the sound quality of a high-quality wired telephone attached to a good telephone line. This limitation is caused by a number of issues, including the following:

  • Sidetone: hearing one's own voice echoed in the receiver speaker
  • A noticeable amount of constant background noise (this is not interference from outside sources, but noise within the cordless telephone system)
  • Frequency response not being the full frequency response available in a wired landline telephone

Most manufacturers claim a range of about 30 metres (98 ft) for their 2.4 GHz and 5.8 GHz systems, but inexpensive models often fall short of this claim.

However, the higher frequency often brings advantages. The 900 MHz and 2.4 GHz band are increasingly being used for a host of other devices, including baby monitor, microwave oven, Bluetooth, and wireless LAN; thus, it is likely that a cordless phone will suffer interference from signals broadcast by those devices, and also may itself generate interference. It is also possible for a cordless phone to interfere with the 802.11a wireless standard, as the 802.11a standard can be configured to operate in the 5.8 GHz range. However, this can easily be fixed by reconfiguring the wireless LAN device to work in the 5.180 GHz to 5.320 GHz band.

The newer 1.9 GHz band is reserved for use by phones that use the DECT standard, which should avoid interference issues that are increasingly being seen in the unlicensed 900 MHz, 2.4 GHz, and 5.8 GHz bands.


Panasonic Wireless Phone Systems
photo src: www.walmart.com


Security

Many analog phone signals are easily picked up by radio scanners, allowing anyone within range to listen in on conversations (though this is illegal in many countries). Though many such analog models are still produced, modern digital technology is available to reduce the risk of eavesdropping. Digital Spread Spectrum (DSS) typically uses frequency hopping to spread the audio signal (with a 3 kHz bandwidth) over a much wider range of frequencies in a pseudorandom way. Spreading the signal out over a wider bandwidth is a form of redundancy, and increases the signal-to-noise ratio, yielding longer range and less susceptibility to interference. Higher frequency bands provide more room for these wide-bandwidth signals.

To an analog receiver like a scanner, a DSS signal sounds like bursts of noise. Only the base unit using a matching pseudorandom number can decode the signal, and it chooses from one of thousands of such unique codes each time the handset is returned to the cradle. Additionally, the digital nature of the signal increases its tolerance to noise, and some systems even encrypt the digital signal for additional security.


Amazon.com : Panasonic KX-TGE234B 4-Handset Landline Telephone ...
photo src: www.amazon.com


Wireless phone handsets

Roaming wireless phone handsets exist which are not tethered to any particular base station, but which also do not use traditional mobile (cellular) phone networks. These most commonly use digital technologies like DECT, 2.4 GHz unlicensed spectrum, or 802.11a/b/g standards-based wireless LAN technology. The wireless phone handset must connect to a wireless access point or base station that supports the same technology. Also required is a call management function and a gateway to the public switched telephone network (PSTN). This may or may not be integrated in the base-station. A Voice over IP service can be used by phones that use wireless data access points, thus using a broadband Internet connection to defer the connection to the PSTN to a remote gateway operated by the service provider, close to the call's destination. Analog equivalents do exist and can provide longer reach, but with potential loss of confidentiality and voice quality. Most digital systems have inherent encryption or offer optional encryption.


Panasonic Link2Cell Bluetooth Cordless Phone and Answering Machine ...
photo src: www.walmart.com


Health and safety
